SEVR Type Solenoid Valve
Product description
Main Features: * Max. action pressure difference: 3.2MPa under 85% rated voltage.
* Min. action pressure difference: 0.02MPa.
* Max. working pressure: 4.5MPa.
* Ambient Temperature: -30℃ ~ +55℃.
* Medium Temperature: -40℃ ~ +105℃.

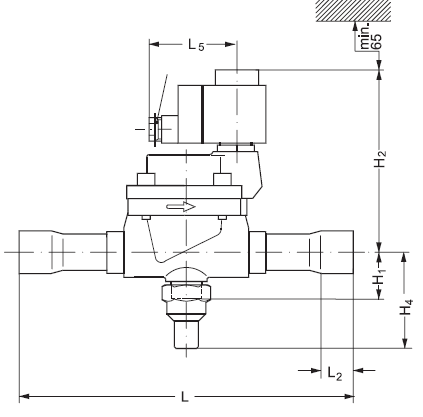

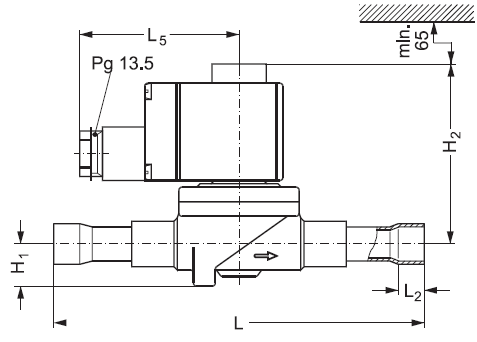

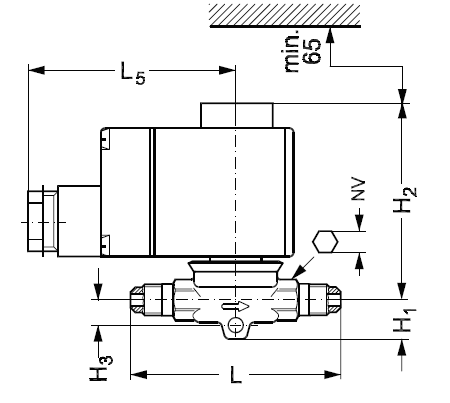

| Part No. | Connection | Coil | Products Drawing | |||||
| Size | Type | |||||||
| SEVR3 | 1/4" | Flare | a.c/d.c |  |
||||
| 3/8" | Flare | |||||||
| SEVR6 | 3/8" | Flare | a.c/d.c | |||||
| 1/2" | Flare | |||||||
| SEVR10 | 1/2" | Flare | a.c/d.c | |||||
| 5/8" | Flare | |||||||
| SEVR15 | 5/8" | Flare | a.c/d.c | |||||
| SEVR3 | 1/4" | Solder | a.c/d.c |  |
||||
| 3/8" | Solder | |||||||
| SEVR6 | 3/8" | Solder | a.c/d.c | |||||
| 1/2" | Solder | |||||||
| SEVR10 | 1/2" | Solder | a.c/d.c | |||||
| 5/8" | Solder | |||||||
| SEVR15 | 5/8" | Solder | a.c/d.c | |||||
| 7/8" | Solder | |||||||
| SEVR20 | 7/8" | Solder | a.c | |||||
| 1-1/8" | Solder | |||||||
| SEVR22 | 1-3/8" | Solder | a.c | |||||
| SEVR25 | 1-1/8" | Solder | a.c |  |
||||
| 1-3/8" | Solder | |||||||
| SEVR32 | 1-3/8" | Solder | a.c |  |
||||
| 1-5/8" | Solder | |||||||
| SEVR40 | 1-5/8" | Solder | a.c | |||||
| 2-1/8" | Solder | |||||||
